Thursday, June 23, 2011

More on Solar Panel and test system Information

For more information on Solar Panel goto :http://en.wikipedia.org/wiki/Photovoltaic_system


For Project developement and intergration goto :
http://www.mtl-system.com/

Software Screen Shots


Parameters setting for the software. Setting Irradiance to 50 watts per m square. And the area to be 0.7 m square.
Temperature and angulation is not set at this moment.





Resultant efficiency is at around 4.4 %. Suggest to test outside to use the actual sunlight to have even sunlight exposure on the solar panel. Result might be better.
Typical efficiency for the Solar panel range around 11%.





* Efficiency of Solar Panel = Max Power (Watt) / (Area (m2) x Irradiance (Watt/m2))



Connection to the Solar Panel







We connect the Solar Panel directly to the System. As we found out that the Solar Panel charger controller drop the voltage to around 12 V (suitable for charging the battery). The Solar Panel is capable of outputting a voltage of 16V so by passing the charger controller we get the actual voltage from the Solar Panel.







Irradiance Meter











The Irradiance meter was use to measure the Light source or Sunlight in Watt per meter square.









Due to the fact that the halogen light source is not distributed evenly on the Solar panel. Several readings have been taken on the Solar panel on the individual cells (total 4 x 9 ) = 36 readings.





Average value is set at around at 50 Watt per meter square .

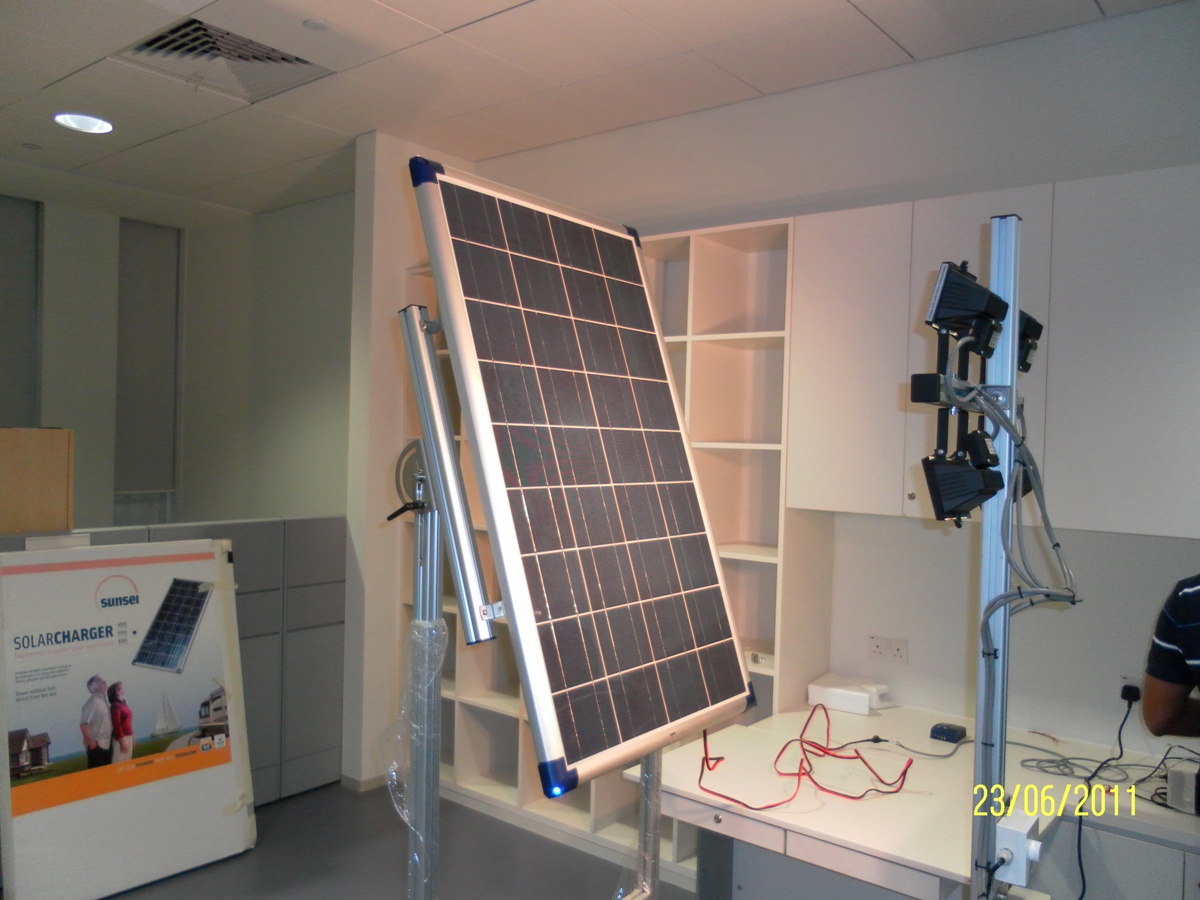

Solar Panel Efficiency Tester


MTL System Solar Panel Efficiency Tester come complete with a Halogen Light Source, Controller (with built in load resistors) and Datalogging Software.





Halogen light source simulating as the sunlight.
